Product Overview

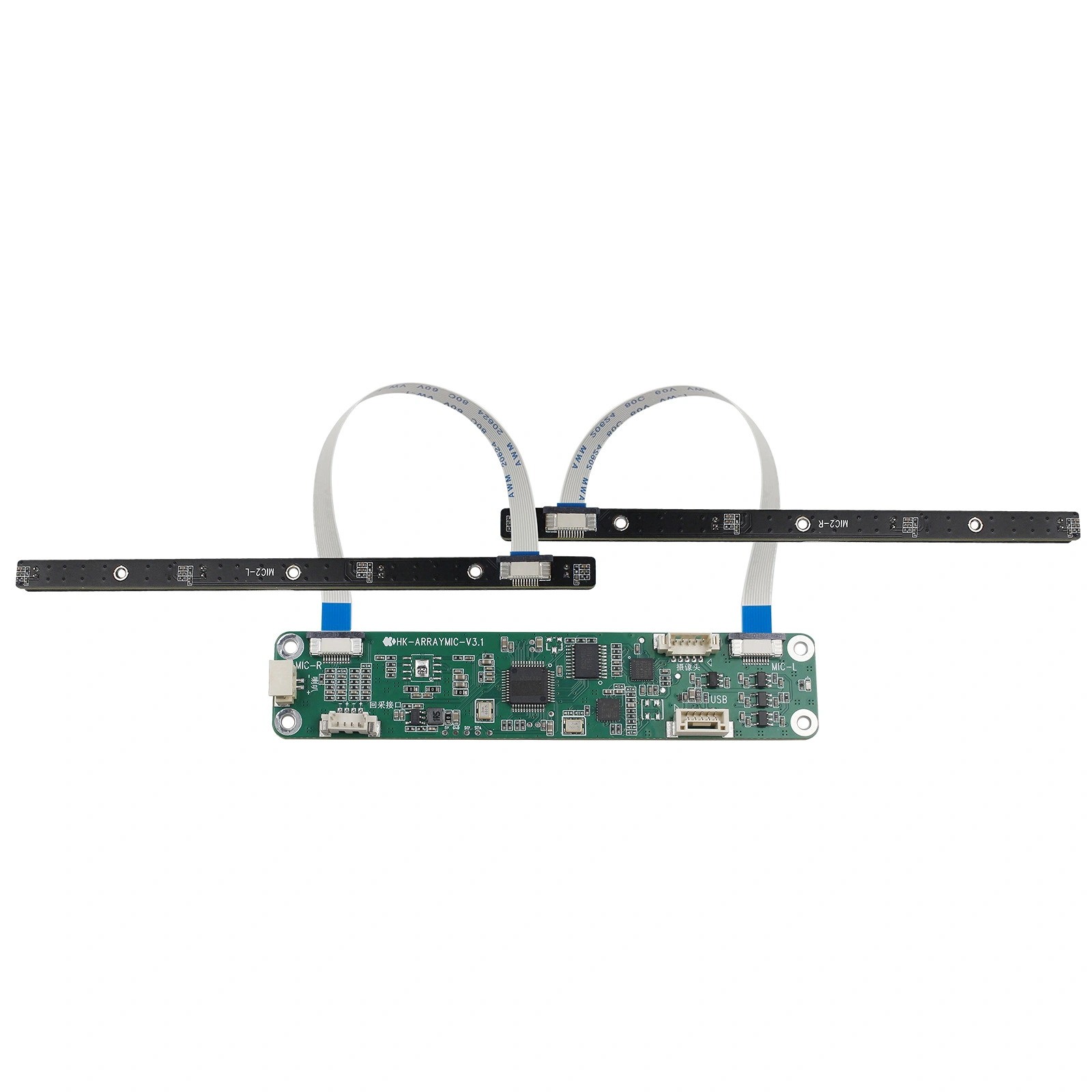

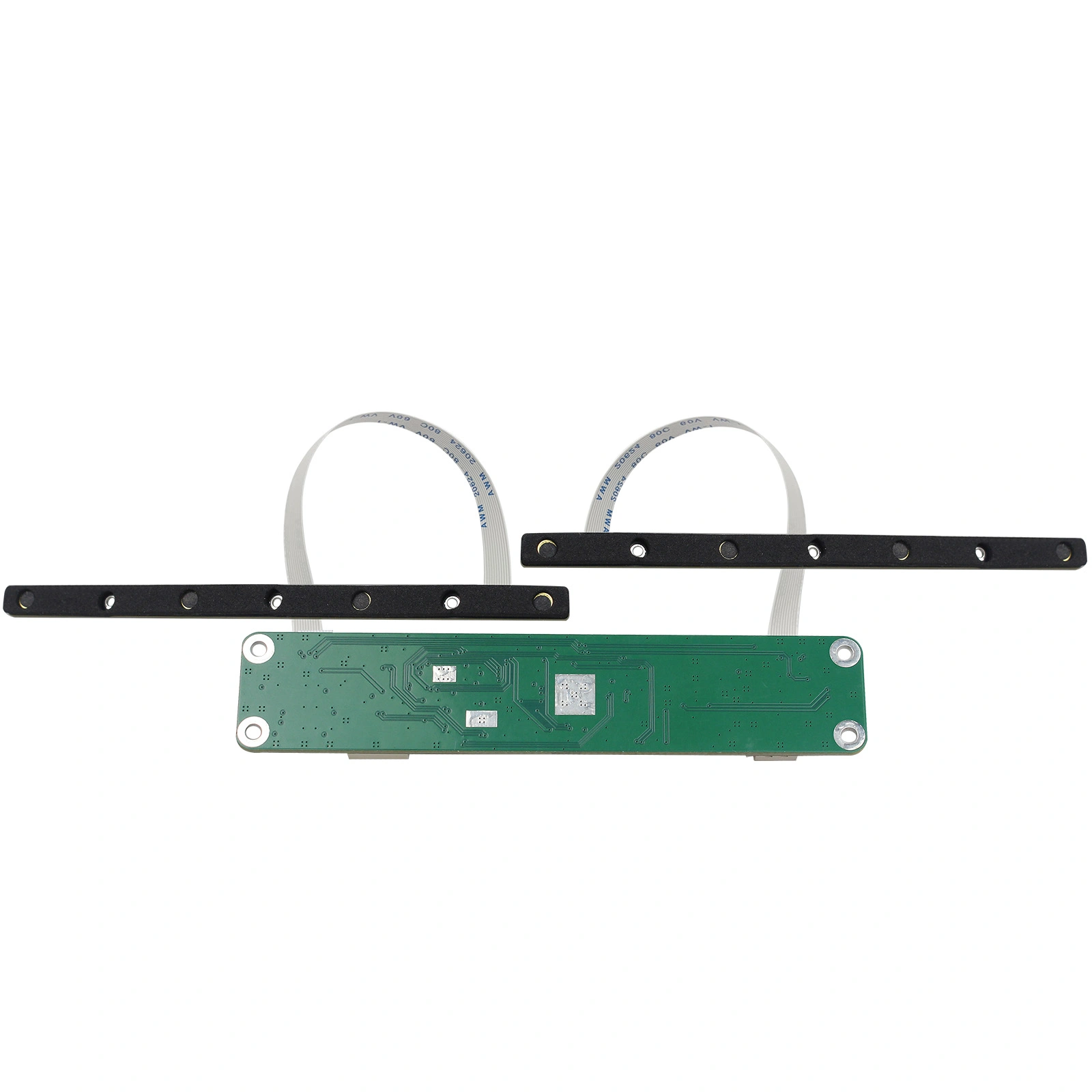

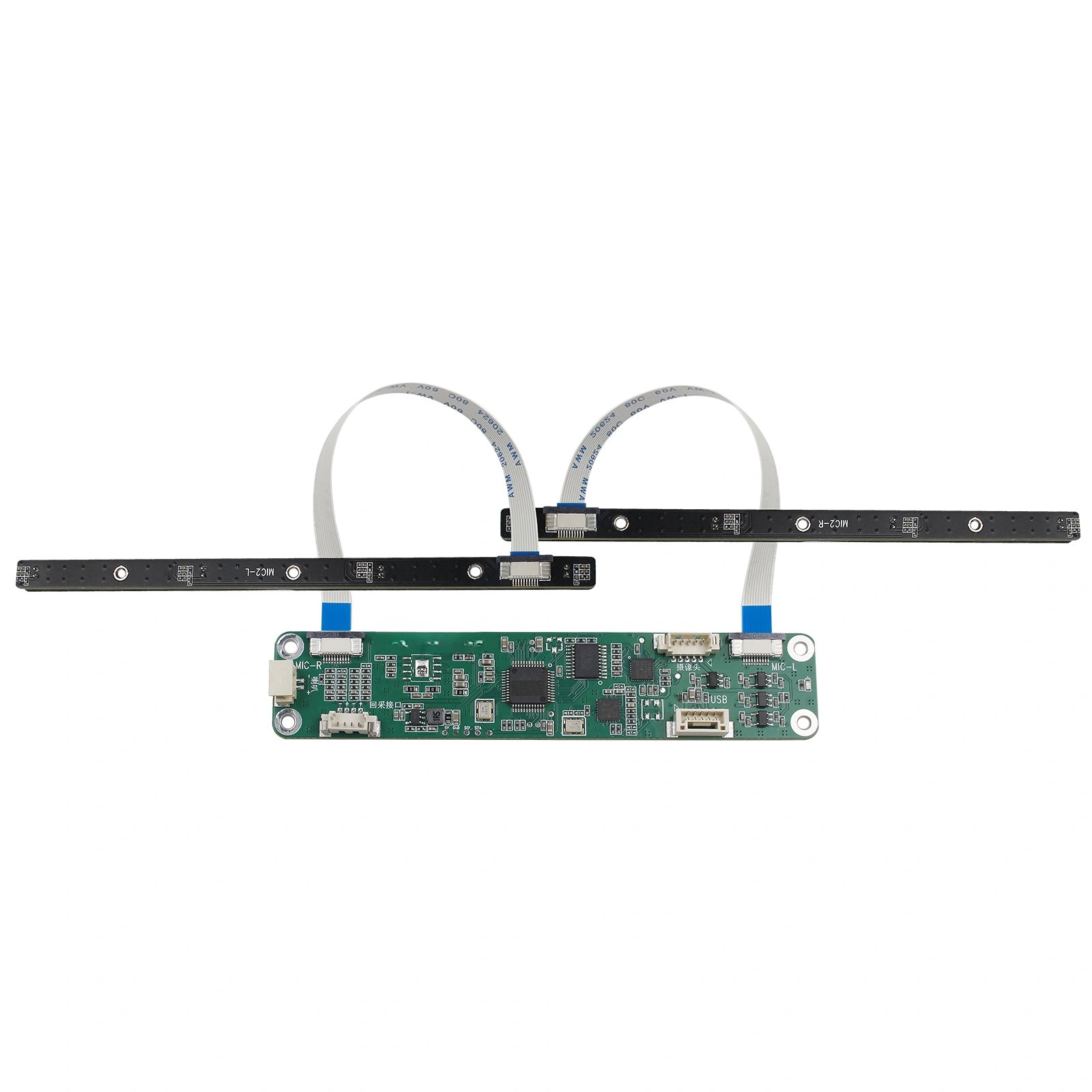

The GYKH-8M-F180-U is a high-density 8-microphone MEMS array specifically engineered for scenarios requiring precise frontal pickup and rear-noise suppression. By combining 8 high-SNR MEMS sensors with adaptive beamforming and differential directional algorithms, this module creates a stable 180° fan-shaped pickup zone.

It is the ideal acoustic solution for Smart TVs, Soundbars, and Automotive infotainment systems, where it effectively isolates user speech from rear interference, speaker echoes, and room reverberation, ensuring superior clarity for both human communication and AI voice recognition (ASR).

 Key Technical Highlights

  • High-Density 8-Mic Matrix: Compared to standard 4-mic solutions, the 8-mic architecture delivers a narrower beam and stronger directivity, ensuring crystal-clear voice pickup within a 5-meter range.

  • 180° Frontal Directionality: Optimized for users positioned in front of the device. It effectively mutes sound from the rear and sides, preventing false triggers and background noise interference.

  • Pro-Grade Acoustic Processing:

    • AEC (Acoustic Echo Cancellation): Essential for full-duplex communication in TVs and Soundbars.

    • NS (Noise Suppression): Advanced suppression of ambient noise and room reflections.

    • Beamforming (BF): Digitally focuses on the active speaker for enhanced signal quality.

  • Seamless System Integration: Supports standard digital interfaces (USB / I²S) and is fully compatible with mainstream voice platforms like XMOS, Android, and Windows.

Technical Specifications

Category Specification
Model GYKH-8M-F180-U (Directional Edition)
Microphone Count 8 High-SNR MEMS Microphones
Pickup Pattern 180° Frontal Directional (Fan-shaped)
Effective Range 5 Meters (Long-range capture)
DSP Features AEC, NS, AGC, Beamforming
Output Interface USB 2.0 / I²S (Optional)
Power Consumption Low-power optimized for always-on devices

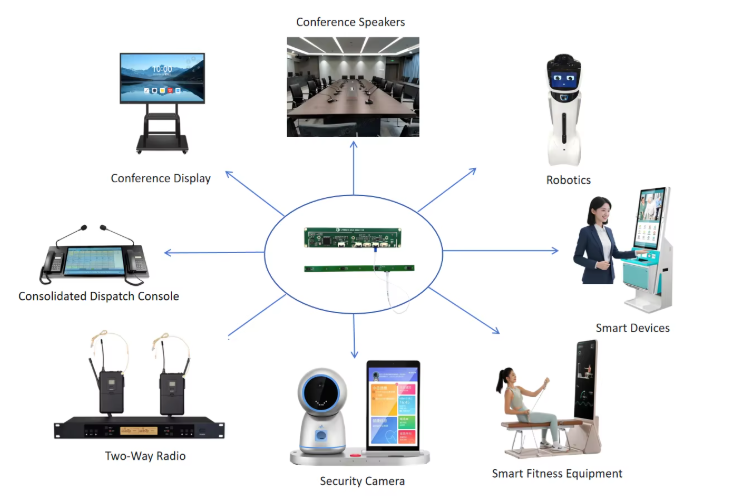

 Strategic Applications

  • Smart TV & Home Theater: Integrated into TV bezels or home projectors to capture user commands while ignoring wall reflections.

  • Conferencing Soundbars & IFPD: The core acoustic module for all-in-one meeting boards and video bars.

  • Automotive Front-Row Interaction: Perfect for dashboard integration to focus on driver and passenger speech while suppressing engine and road noise from the rear.

  • Smart Education: Integrated into Interactive Whiteboards (IWB) for clear classroom audio recording and remote teaching.

Performance Advantage: 180° Frontal vs. 360° Omni

Feature 360° Omnidirectional Array GYKH-8M-F180-U (180° Frontal)
Target User Centered in the room Facing the device (TV/Dashboard)
Rear Noise Captured Strongly Suppressed
Echo Handling Standard Enhanced (Optimized for Soundbars)
Privacy Picks up whole room Focused on the frontal interaction zone
