Key Technical Advantages:

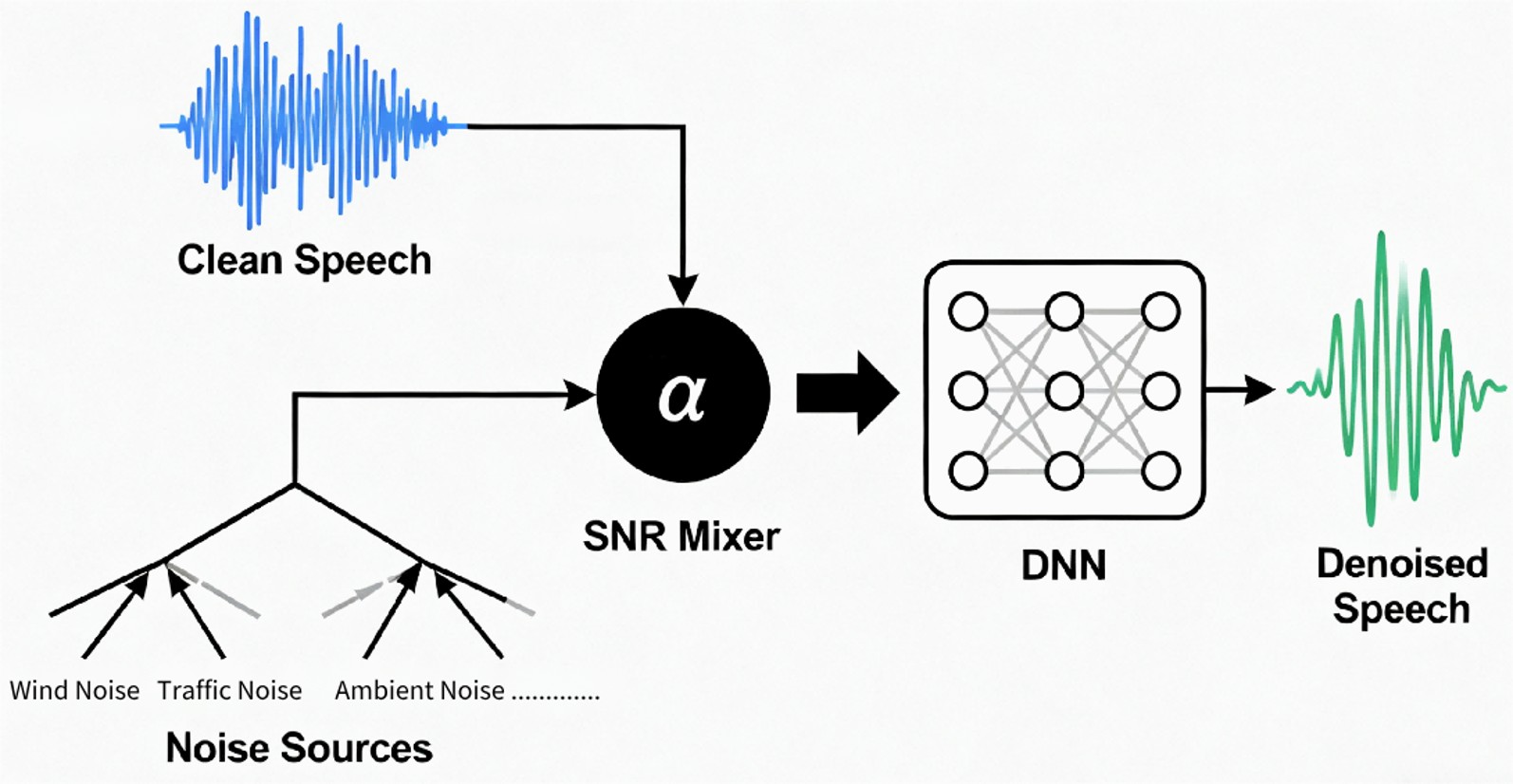

• DNN-Based Smart Noise Cancellation: Unlike traditional filters, our DNN algorithm specifically identifies human vocal patterns, achieving a noise suppression depth of ⩾ 35dB by effectively stripping away non-human interference.

• Precision AI Beamforming: Utilizing 4-mic array synergy, this module generates a highly focused beam pattern. It offers superior spatial selectivity compared to conventional tech, supporting Omnidirectional, Bi-directional, and Uni-directional modes.

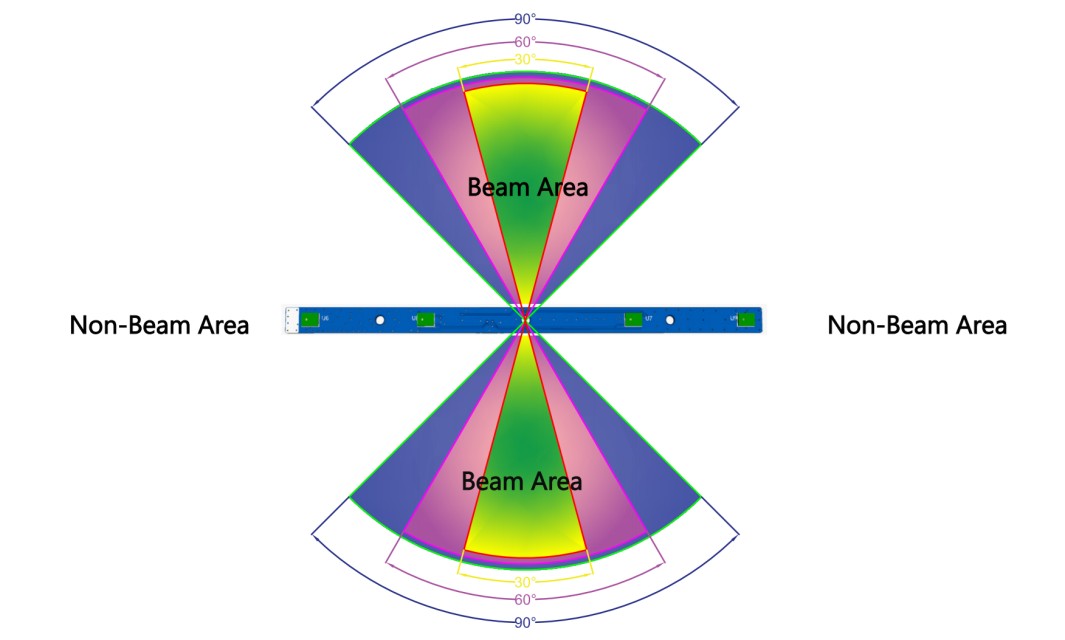

• Adjustable “Beam Area”: The pickup angle is customizable. Within the Beam Area, voices are enhanced and purified via AI-Noise Cancellation; in the Non-Beam Area, interfering speech is blocked. The transition boundary is meticulously controlled within a 5°–10° deviation.

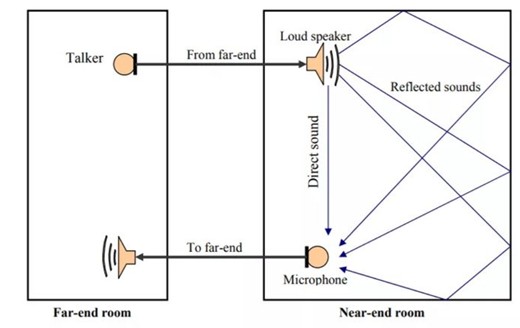

• Advanced Acoustic Echo Cancellation (AEC): High-grade AEC prevents far-end feedback, ensuring a smooth, echo-free full-duplex communication experience.

• Plug-and-Play Integration: Features driver-free USB Audio Device support alongside analog interfaces, making it compatible with Android, Linux (2.6.24+), and Windows VISTA/7/8/10/11

  Feature	Specification Details
  Core Technology	DNN (Deep Neural Network) + AI Beamforming
  Noise Suppression	⩾ 35dB (Smart Human Voice Identification)
  Microphone Array	4-Channel High-Performance Matrix
  Pickup Patterns	Adjustable: Omnidirectional / Bi-directional / Uni-directional
  Beam Accuracy	5°–10° Transition Boundary Control
  Echo Cancellation	Professional Grade AEC (Full-Duplex)
  Interface Options	USB Audio (UAC Driver-free) / Analog Audio Interface
  OS Compatibility	Android, Linux, Windows VISTA/XP/7/8/10/11
  Customization	Pickup distance and angle ranges are customizable per project
