Integrated All-in-One 4-Mic USB AI Microphone Array Module for Accurate ChatGPT Voice-to-Text-GYSH-4M-AI-STT

Integrated All-in-One 4-Mic USB AI Microphone Array Module for Accurate ChatGPT Voice-to-Text-GYSH-4M-AI-STT

 Product Overview

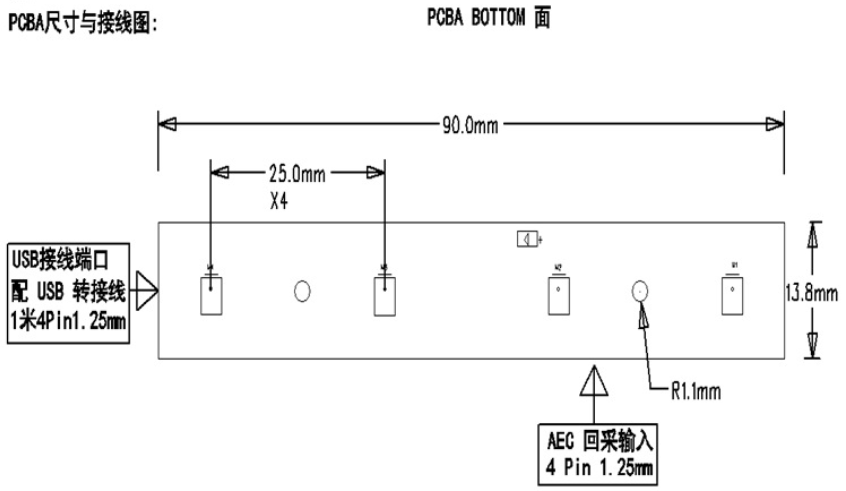

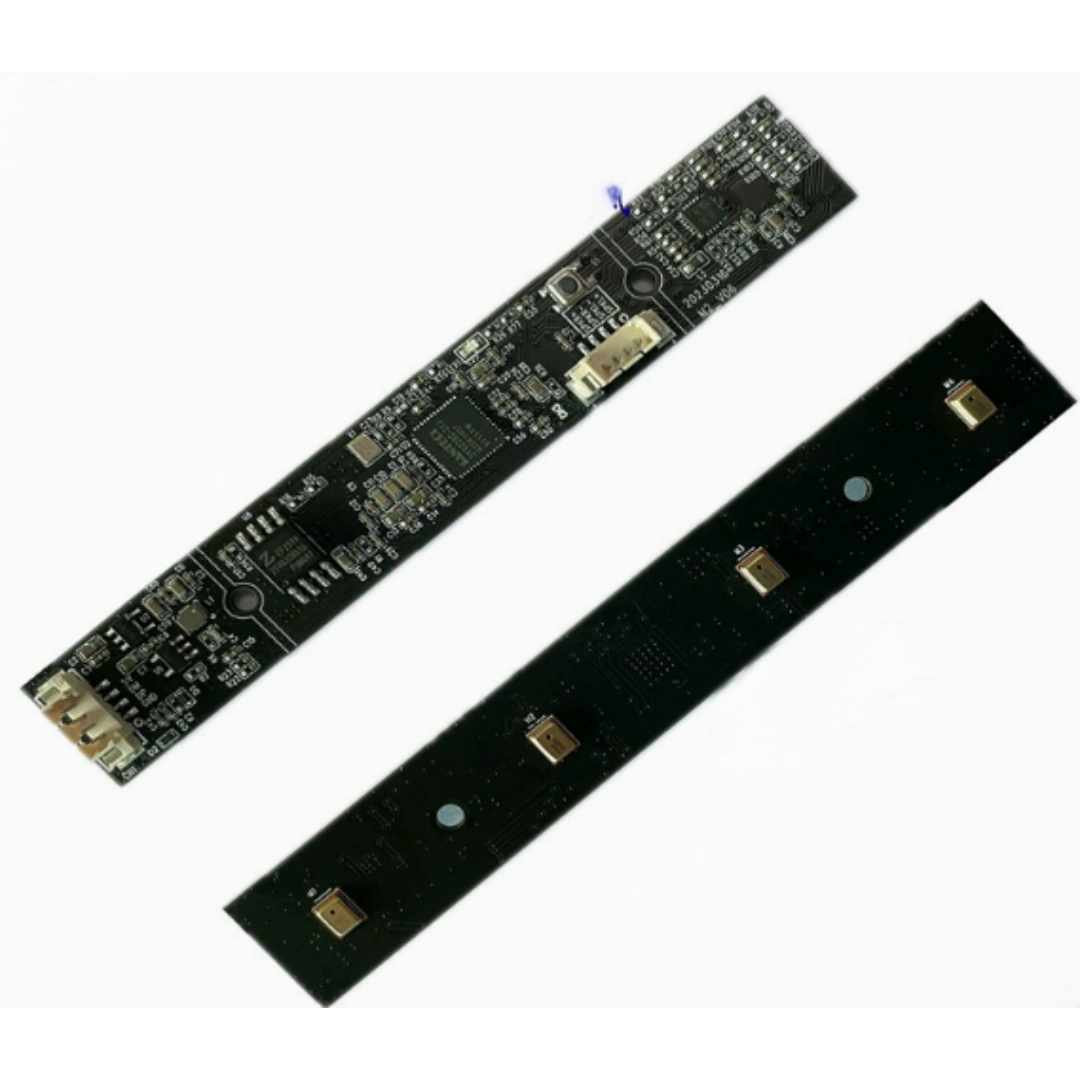

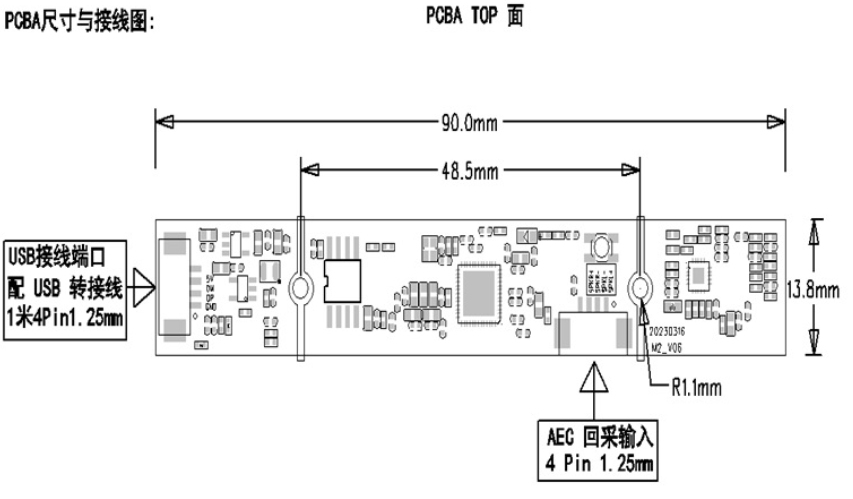

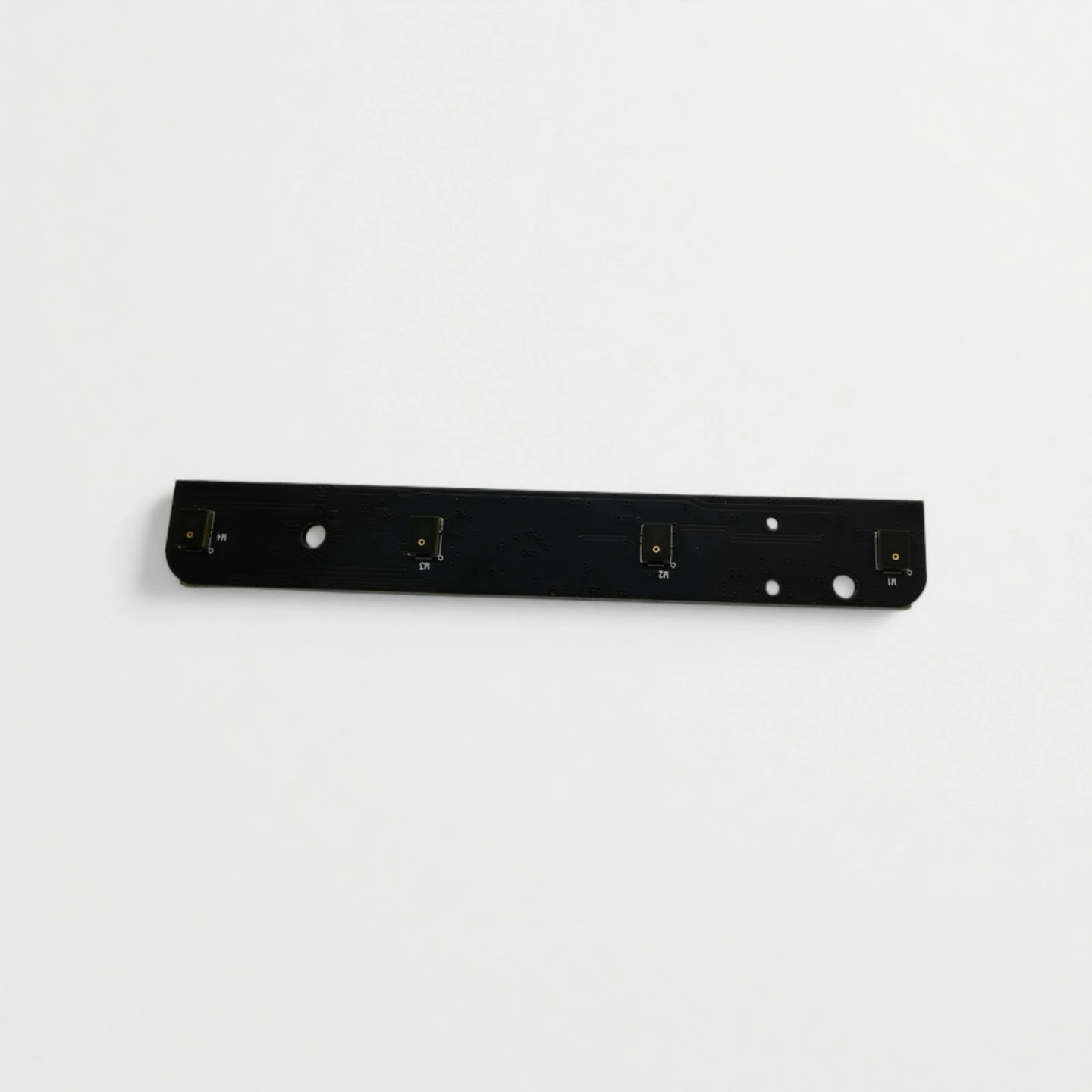

The GYSH-4M-AI-STT is a professional Integrated All-in-One USB AI Microphone Array Module designed as a plug-and-play acoustic solution for the Large Language Model (LLM) era. This self-contained module integrates a high-performance 32-bit audio processor, ultra-low-power DSP, and a 4-mic linear array into a single, compact 90 * 13.8 mm PCBA.

Specifically engineered to provide the high-SNR, clean audio required for ChatGPT, Claude, and OpenAI Whisper, this integrated module eliminates the need for complex acoustic tuning, providing maximum transcription accuracy for smart terminals and portable AI devices.

Key Functional Features

  • Precision Voice-to-Text (STT) Optimization: Tuned to deliver 16kHz/16-bit audio streams, minimizing Word Error Rates (WER) for AI recognition engines.

  • Advanced AI Noise Reduction Suite:

    • AEC (Acoustic Echo Cancellation): Removes speaker feedback for seamless interaction.

    • NS (Noise Suppression): Intelligently filters over 300 types of environmental noise.

    • DRC (Dynamic Range Control): Balances audio levels for consistent clarity.

    • Anti-Howling: Integrated frequency shifting and howling suppression for stable audio output.

  • 4-Channel Synchronous Capture: Enables advanced spatial filtering and beamforming to isolate the speaker’s voice from background chaos.

  • Plug-and-Play Compatibility: Universal USB 2.0 interface (supports OTG) with no driver installation required for Android, Windows, and Linux.

Technical Specifications

Category Specification
Model GYKH-4M-AI-STT
Form Factor 90 * 13.8 mm (Ultra-slim PCBA)
Processor High-Performance 32-bit Audio DSP
Sampling Rate 16kHz (Optimized for AI Engines)
Bit Depth 16-bit
SNR 64dB+
Current Consumption Ultra-Low Power (< 50mA active)
Interface USB 2.0 (Compatible with 2.1)
Operating System Android, Windows, Linux (Driver-free)

 Optimized for AI Developers

The GYKH-4M-AI-STT is the ideal hardware choice for developers building next-generation AI agents:

  • LLM Ready: Fully compatible with OpenAI Whisper, Google Gemini Live, and Microsoft Azure Speech.

  • Zero-Host-Load: On-board DSP processing handles all noise reduction, offloading the CPU and extending the battery life of your device.

  • Compact Integration: Designed to fit into the slim top bezels of tablets, smart displays, and handheld AI recorders.

Application Scenarios

  • AI Smart Terminals: Hardware gateways for ChatGPT and other virtual assistants.

  • Portable AI Recorders: Handheld devices for automatic meeting minutes and real-time translation.

  • Smart Office & Education: Interactive whiteboards and huddle room conferencing systems.

  • Service Robotics: Providing high-accuracy voice command recognition for industrial and retail robots.
