Professional 4-Mic MEMS Microphone Array with 60° Directional Pickup, AEC & UAC 1.0 GYKH-4M-D60-U

Professional 4-Mic MEMS Microphone Array with 60° Directional Pickup, AEC & UAC 1.0 GYKH-4M-D60-U

The GYKH-4M-D60-U is a versatile and cost-effective 4-mic solution engineered for mainstream AI voice interaction. By combining a linear 4-MEMS microphone array with advanced Directional Pickup Technology (DPUS), it delivers focused 60° voice capture, significantly reducing background noise compared to standard omnidirectional modules.

With integrated AEC, NS, and AGC algorithms, the GYKH-4M-D60-U provides a “Plug-and-Play” professional audio experience for smart kiosks, office communication, and AI-enabled hardware.

Physical Specifications

Compact & Flexible for Standard Integration:

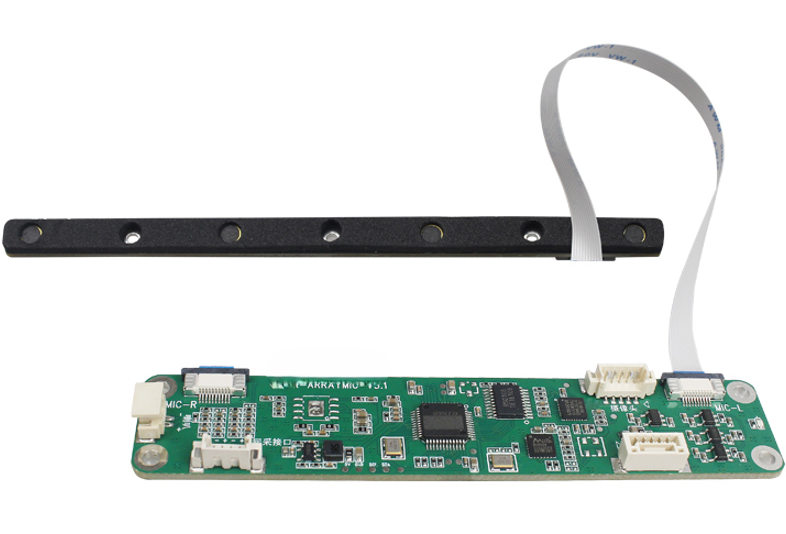

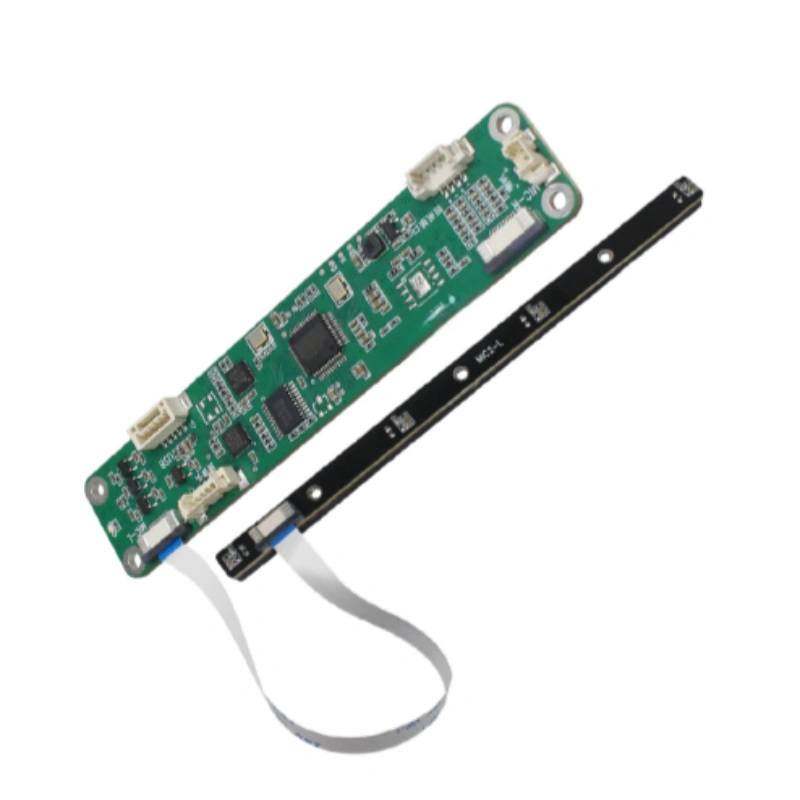

  • Main Board: 100 * 20 mm (Integrated DSP and USB UAC 1.0 interface).

  • Microphone Board: 60 * 6 mm (Ultra-compact 4-mic layout, ideal for space-constrained devices like POS systems or portable recorders).

Key Technical Highlights

  • Balanced 4-Mic MEMS Array: Provides an excellent balance between acoustic sensitivity and system power efficiency for everyday AI applications.

  • 60° Directional Pickup (DPUS): Optimizes voice clarity by focusing on the primary user while suppressing peripheral ambient noise.

  • Essential Acoustic DSP Suite:

    • AEC (Acoustic Echo Cancellation): Ensures smooth two-way communication by removing speaker feedback.

    • NS (Noise Suppression): Filters out steady-state background noise (fans, air conditioning, etc.).

    • AGC (Auto Gain Control): Normalizes voice levels for consistent recording quality within a 3-5 meter range.

  • UAC 1.0 Plug & Play: Instant USB connectivity for Windows, Android, and Linux—ready to use without additional drivers.

 Application Scenarios

  • Smart Business: Smart POS systems, self-service kiosks, and digital signage with voice interaction.

  • Office Collaboration: Huddle room conferencing, desktop IP phones, and webcasting.

  • AI Devices: Educational robots, smart home control panels, and voice-activated appliances.

  • Customer Service: Reception desk intercoms and information counters.

Performance Comparison: 4-Mic vs. 8-Mic

Feature GYKH-4M-D60-U (Standard) GYKH-8M-D60-U (Flagship)
Microphone Count 4 MEMS Units 8 MEMS Units
Mic Board Size 60 * 6 mm (Ultra-Compact) 115 * 6 mm (Linear)
Effective Pickup Range 3 – 5 Meters 5 – 8 Meters
DSP Complexity Essential (AEC/NS/AGC) Full-Stack (AEC/NS/AGC/VE/BF)
Best For Smart Retail & Standard Office Courts, Medical & High-End Biz
Key Advantage Cost-Effective & Space-Saving Ultimate Precision & Distance
