Product Highlights
8-Element Linear MEMS Microphone Array
GYHA-LA08-Pro integrates eight high-performance MEMS microphones arranged in a precise linear array structure. Compared with conventional single microphones or low-channel microphone arrays, the increased microphone density provides higher spatial sampling resolution, improved sound field reconstruction capability, and enhanced sound source localization accuracy.
Pure Raw Audio Output for Algorithm Development
Unlike commercial voice modules with embedded DSP processing, AMM-LA08-Pro outputs original, unprocessed microphone signals directly from the hardware.
The module does not apply:
- Noise suppression (NS)
- Acoustic echo cancellation (AEC)
- Automatic gain control (AGC)
- Voice enhancement algorithms
- Compression processing
This ensures the original acoustic characteristics are fully preserved, making it ideal for:
- AI speech dataset collection
- Acoustic algorithm research
- Beamforming algorithm development
- Sound localization experiments
- Professional audio analysis
High Precision Spatial Audio Capture

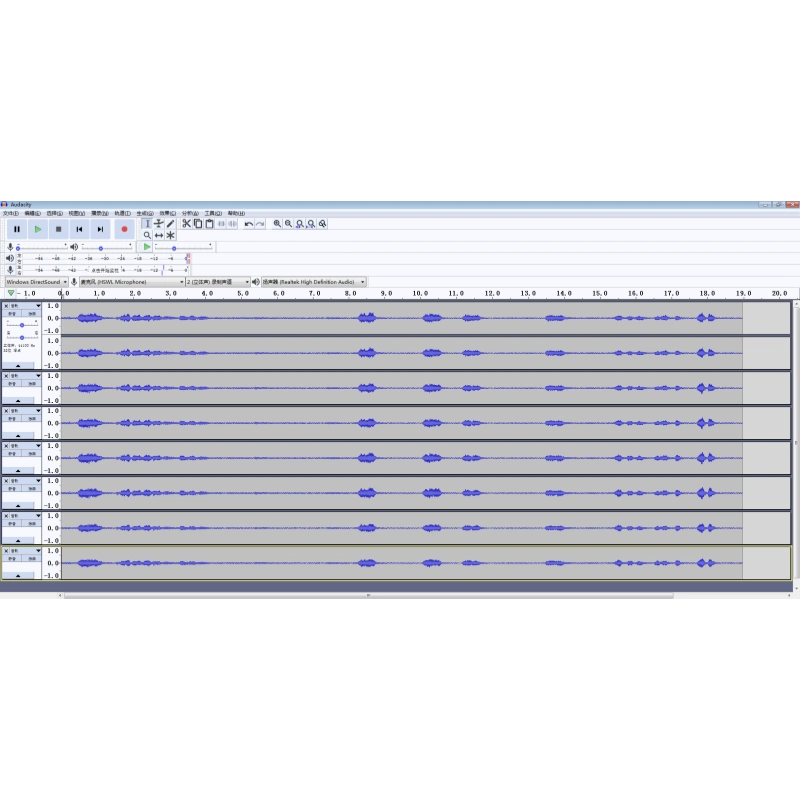

The eight microphones are synchronously sampled with accurate phase consistency, enabling precise spatial acoustic information acquisition.
The linear microphone arrangement provides strong directional characteristics and creates a solid hardware foundation for:
- Direction of arrival (DOA) estimation
- Beamforming
- Sound source tracking
- Spatial audio analysis
Long-Distance Far-Field Pickup Capability
Through optimized acoustic design and high-performance audio acquisition circuitry, GYHA-LA08-Pro supports effective far-field voice capture up to 10 meters.
The module can accurately capture:
- Human speech
- Environmental sounds
- Weak acoustic signals
- Multi-source audio scenes
while maintaining excellent signal integrity.
Plug-and-Play USB Integration
The module adopts a standard USB audio interface, supporting:
- Windows
- Linux
- Android
- Embedded platforms
No additional driver development is required, allowing rapid integration into:
- Smart conferencing terminals
- AI voice devices
- Acoustic measurement equipment
- Research platforms
- Intelligent sensing systems
Stable Industrial Audio Acquisition
Designed with professional-grade audio acquisition circuits and electromagnetic interference protection, GYHA-LA08-Pro provides:
- Low noise operation
- Stable long-term recording
- Reliable multi-channel synchronization
- Consistent audio performance
It is suitable for continuous professional audio acquisition applications.
Product Applications
AI Voice Algorithm Development
The raw multi-channel audio output provides high-quality training data for:
- Speech recognition models
- Noise reduction algorithms
- Beamforming algorithms
- Sound event detection
- Acoustic AI applications
Acoustic Research & Measurement
Suitable for:
- Acoustic laboratory experiments
- Sound field analysis
- Spatial audio research
- Audio signal processing
Smart Conference System Development
Provides multi-channel acoustic input for:
- Voice tracking
- Speaker localization
- Far-field voice capture
- Intelligent meeting devices
Sound Source Localization Systems
The linear microphone array architecture supports advanced acoustic localization algorithms including:
- DOA estimation
- TDOA analysis
- Beamforming processing

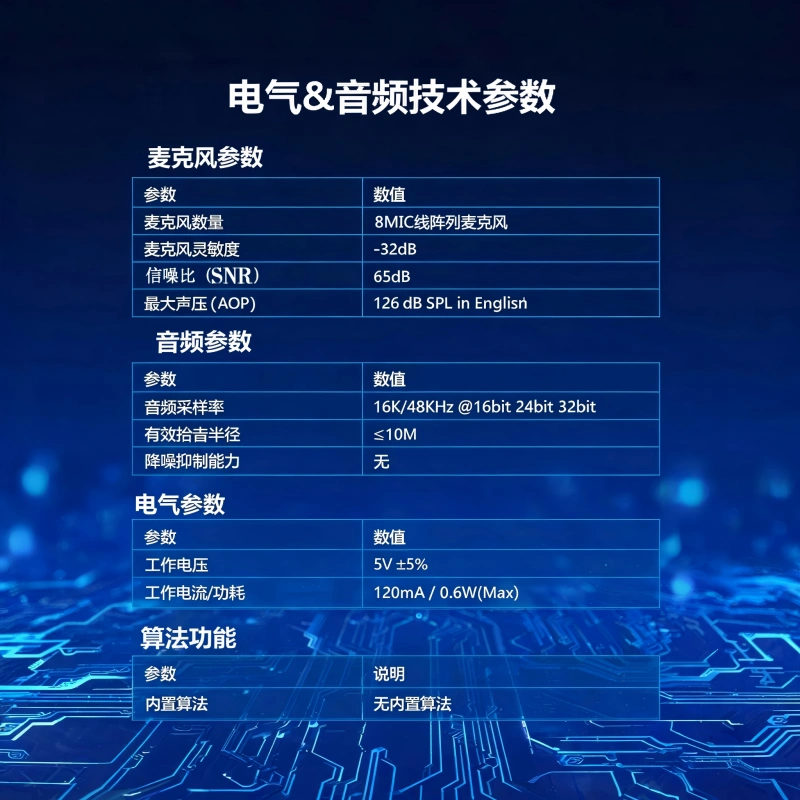

Technical Specifications
Microphone Array Parameters
| Parameter | Specification |
|---|---|
| Microphone Configuration | 8-Microphone Linear Array |
| Microphone Type | High Sensitivity MEMS Microphone |
| Microphone Sensitivity | -32 dB |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Acoustic Overload Point (AOP) | 126 dB SPL |
| Array Structure | Linear Equal-Spaced Layout |
Audio Performance
| Parameter | Specification |
|---|---|
| Audio Output | Raw Multi-channel Audio |
| Sampling Rate | 16kHz / 48kHz |
| Resolution | 16bit / 24bit / 32bit |
| Effective Pickup Distance | ≤10 meters |
| Built-in Noise Reduction | No |
| Built-in Echo Cancellation | No |
| Built-in Algorithm Processing | No |
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Interface | USB Audio Interface |
| Operating Voltage | 5V ±5% |
| Operating Current | 120mA |
| Maximum Power Consumption | 0.6W |
| System Compatibility | Windows / Linux / Android / Embedded Systems |
Why Choose SISTC Linear Microphone Array?
With more than 15 years of experience in MEMS microphone technology and acoustic sensing solutions, SISTC provides professional microphone array hardware platforms for global AI audio developers and intelligent device manufacturers.
Our expertise includes:
- MEMS microphone design and manufacturing
- Multi-channel microphone array development
- Beamforming hardware platforms
- Acoustic AI sensing solutions
- OEM/ODM customization
SISTC helps customers accelerate acoustic algorithm development with reliable hardware platforms and high-quality raw audio acquisition solutions.
