Revolutionizing Voiceprint Recognition with MEMS MIC Technology

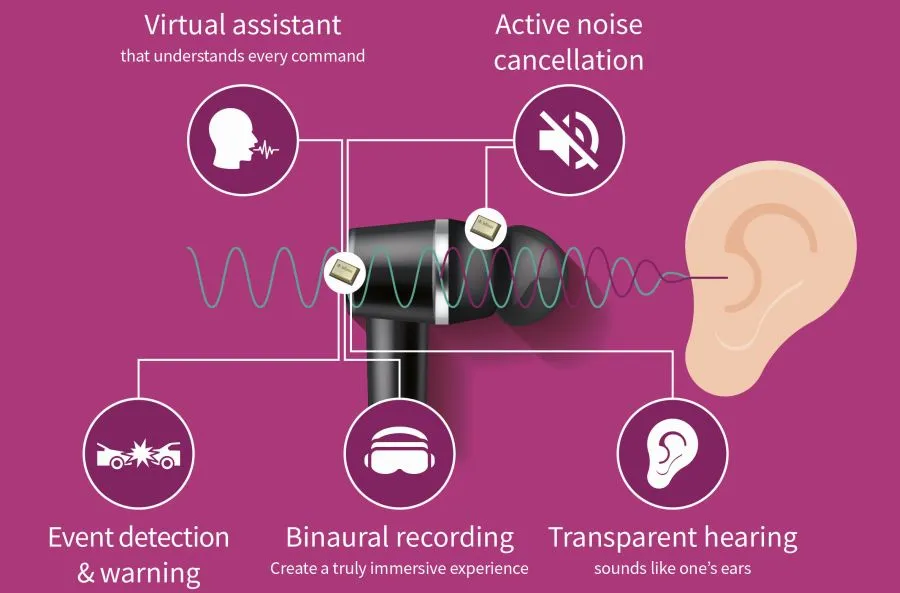

Figure: Modern voice-enabled devices (earbuds, assistants, smart home systems) leverage advanced MEMS MIC arrays to power features like virtual assistants, noise cancellation, and event detection. MEMS microphones have become the critical front-end in voiceprint (speaker) recognition systems, providing the high-quality audio capture that biometric algorithms require_digikey.com_eetimes.eu. Thanks to wafer-scale semiconductor fabrication, these silicon mics are extremely compact and low-power, yet deliver very high sensitivity and signal-to-noise ratios. By converting sound to digital signals on-chip, MEMS MICs eliminate analog interference and enable tightly synchronized multi-mic arrays. Together, these innovations in MEMS MIC design directly translate to more accurate voiceprint acquisition and recognition – essential for secure voice-based authentication and hands-free controls across consumer and automotive applications.

High-Performance MEMS Microphones for Voice Biometrics

Voiceprint recognition (also called speaker recognition) is a biometric method that uses a person’s unique vocal characteristics – such as pitch, cadence, and timbre – to verify identity For reliable voiceprint matching, the input audio must preserve the subtle frequency and timing details of the speaker’s voice, with minimal added noise or distortion. High-performance MEMS MICs meet these requirements: their extremely low self-noise and wide dynamic range let speech dominate the signal. For example, state-of-the-art MEMS microphone designs achieve SNR on the order of 65–70 dB(A) or more meaning the microphone’s own noise floor (often below 25 dB SPL) is far below typical speech levels. In practice this means the microphone is “no longer the limiting factor” in the audio chain, enabling higher performance of voice recognition algorithms In addition, features like rapid 6–20 µs analog-to-digital conversion and matched frequency response across units ensure that even far-field or whispered speech is captured faithfully. These advances enable voiceprint systems to work reliably even with ambient noise or distant speakersdigikey.

Ultra-High SNR and Sensitivity

Extremely Low Noise (High SNR): Modern MEMS mics achieve best-in-class SNR. Designs using dual-backplate diaphragms (inspired by studio condenser mics) can reach ~105 dB dynamic range with distortion <1% even at 128 dB SPLmouser.com mouser.com. In practical terms, a high-end MEMS MIC (e.g. Infineon IM69D130) has an equivalent noise floor around 25 dB SPL (A-weighted) and SNR ~69 dB(A)mouser.com. This low noise floor means voiceprint systems can extract minute vocal features without masking. Even in moderate noise or distance, the voice signal remains well above the microphone’s noise, improving matching accuracy.

Wide Dynamic Range: Thanks to innovative MEMS transducer and ASIC design, these mics handle both very soft and very loud sounds. For instance, a 105 dB dynamic range lets one capture a whisper and a shout without clipping. Acoustic Overload Points often exceed 120–130 dB SPLmouser.com, ensuring loud noises (sirens, heavy machinery) don’t distort the signal. This wide range preserves the full spectrum of voiceprint characteristics – from low-energy glottal tones to high-frequency sibilance – which biometric algorithms use to distinguish speakers.

Tight Sensitivity Matching: Precision semiconductor manufacturing yields MEMS mics with very tight sensitivity and phase tolerances (on the order of ±0.5–1.0 dB)mouser.com. In multi-microphone beamforming arrays, this uniformity is crucial: it ensures all channels “hear” the speaker equally, simplifying signal alignment. When processing voiceprint signals from an array, matched sensitivity and flat frequency response across mics mean the array output is more accurate and predictable, further boosting recognition performance.

Power-Efficient Designs

Ultra-Low Current: Many digital MEMS microphones incorporate power-optimized modes to support always-on listening. For example, some devices consume only a few hundred microamps or less in active listening mode, and can drop to single-digit microamps in standby This low-power operation is often controlled by the PDM clock rate – slowing the clock can trade off bandwidth for power. In practice, a voice-triggered system can keep the MEMS MIC powered all the time (listening for a wake word) without significantly draining a smartphone or IoT battery.

Rapid Wake-Up: Because voice authentication requires catching the entire spoken password or phrase, startup time matters. Advanced MEMS MICs wake up in ~20–50 µs after receiving a clock or power trigger, ensuring no voice segment is missed. This means a voiceprint system can stay in a deep sleep state (saving power) and still respond instantly when speech begins. Overall, the combination of microamp-level standby and quick wake-up makes MEMS MICs ideal for battery-powered security devices and wearables that continuously await voice input.

Integration Advantages of MEMS MIC Solutions

Fully Digital Signal Path: A key innovation is integrating the ADC and digital filters on the same chip. Digital MEMS mics output PDM or I²S audio directly, eliminating the noisy analog path. By moving the analog-to-digital conversion inside the microphone, the device presents a clean digital interface to the host processorThis greatly reduces EMI and RF interference on the signal – for example, the mic-to-ADC wires need not carry analog levels near Wi-Fi or Bluetooth antennas. In practice, this means a device can place the MEMS MIC anywhere (near Wi-Fi, over long cables, etc.) without degrading audio quality It also simplifies board design: no separate ADC or low-noise amplifier is needed, saving space and cost while improving reliability.

Compact Form Factor: MEMS MICs pack an acoustic transducer and electronics into a few cubic millimeters (typical 4×3×1.2 mm package). This tiny size allows multiple microphones on a small PCB for beamforming and noise cancellation. For voiceprint systems, multiple MEMS MICs can be arrayed to focus on a speaker’s direction or to reduce ambient noise. Despite their small size, these mics often include built-in mechanical filters (ports) and robust packaging. Many MEMS packages meet high IP ratings (e.g. IP57), meaning they resist dust, humidity, and even water intrusion. Such ruggedness is valuable in industrial or outdoor security applications where microphones must survive harsh conditions.

Low-Profile and Flexible Mounting: The thin form of MEMS microphones (often <1.5 mm tall) makes them easy to integrate inside smartphones, wearables, security cameras, and automotive headliners. Engineers can hide multiple MEMS mics behind grills or inside panels without bulky housings, while still maintaining consistent omnidirectional pickup. Because they are fabricated in cleanroom processes, MEMS MICs also exhibit excellent part-to-part consistency. For multi-mic systems, this yields very uniform performance: phase differences between mics are controlled within a few degrees. In short, MEMS MICs give designers a dense, uniform sensing array that was not practical with legacy microphones.

Key Performance Metrics

The latest MEMS MIC products set new benchmarks in every critical spec that matters for voiceprint systems:

Signal-to-Noise Ratio (SNR): Typical high-end MEMS MICs offer SNR values around 65–75 dB(A)_{mouser.comeetimes.eu.} This is the ratio of speech level to noise floor – the higher, the better. Such high SNR ensures that even in far-field pickup or mild noise, the captured voiceprint retains its detail.
Sensitivity: These devices typically have sensitivities on the order of –26 to –36 dBFS (relative to a 94 dB SPL, 1 kHz tone). While absolute sensitivity varies by design, manufacturers calibrate each microphone so that its sensitivity tolerance is very tight (often ±1 dB)_mouser.com. Tight tolerance means less variation in gain from channel to channel, which is essential when combining multiple mics for array processing.
Dynamic Range: Thanks to dual-backplate designs and high-resolution ADCs, MEMS MICs achieve dynamic ranges of 100–110 dB or more_{mouser.commouser.com.} In practice, this covers quiet whispers up to loud ambient sound without distortion. High dynamic range is important in security scenarios (e.g. processing voice commands at a nightclub door) to prevent clipping.
Power Consumption: Cutting-edge MEMS MICs operate at sub-milliamp currents in active mode and microamp-level in standby. For example, in “always-listening” use-cases they might draw only 200–500 µA at 1.8V, and drop to under 5 µA when idle_mouser.com. This ultra-low power allows continuous voice monitoring (for wake words or verification prompts) with minimal impact on battery life. Many products also support advanced power modes (sleep, clock gating) for fine-grained power/performance trade-offs.
Package & Array Matching: Package size is typically 3×4 mm or smaller. Crucially, wafer-scale fabrication yields tight acoustic matching. Specifications often call out sensitivity matching within ±1 dB and phase matching within ±2°_mouser.com.These tight specs enable effective beamforming and source localization, which in turn improves voiceprint capture in noisy or reverberant environments.

Application Scenarios and System Integration

Engineers are deploying these innovative MEMS MICs in a range of voiceprint-enabled products and systems:

Consumer Devices & Smart Home: Smartphones and voice assistants increasingly use voice biometrics for user login and personalization. MEMS microphones enable secure “voice unlock” on phones and tablets, as well as voiceprint-aware smart locks and personal assistants. For example, a smart speaker can recognize the homeowner’s voiceprint to unlock music controls or smart home settings. Modern home automation hubs incorporate multiple MEMS MICs for far-field voice capture and reliable speaker ID. On the wearables front, true wireless earbuds use MEMS arrays for beamforming toward the user’s mouth, filtering ambient noise so that voice authentication works even in transit. _{usesmileid.com}
Security & Access Control: Voiceprint recognition is a convenient second factor for access control. High-quality MEMS mics allow biometric “voice keys” in places like secure facilities, financial services, or mobile banking. For instance, phone-based banking apps often verify a caller’s identity using voice biometrics. Advanced MEMS mic arrays mounted in building entry systems can authenticate a person’s voiceprint at the door. In all these cases, the mic’s low noise and stability ensure that the voiceprint template matches the live voice capture accurately over time_{usesmileid.com}.
Automotive Systems: Next-generation vehicles are integrating speaker recognition for driver personalization and security. By identifying who is speaking (driver versus passenger), a car can automatically adjust seats, mirrors, and infotainment to that person’s preferences. More importantly, voiceprint can serve as a secure key: only the authorized driver’s voice is allowed to issue sensitive commands (e.g. start the engine, unlock personal data)validsoft.com. In noisy cabin environments, the high SNR and beamforming capability of MEMS MIC arrays (often 4–6 mics around the cabin) let the system isolate the driver’s voice from road noise, enabling reliable verification_{validsoft.comdigikey.com.}
Industrial & IoT: Factories, hospitals, and field operations use voiceprint for hands-free authentication of workers. For example, a maintenance worker could gain equipment access by speaking. MEMS mics in rugged phones or headsets withstand dust and moisture (IP-rated) while capturing voice biometrics. MEMS microphone sensor nodes also power voice-activated IoT devices that authenticate users before performing actions.

Conclusion: Leading the MEMS MIC Innovation for Voice Biometrics

With each new generation, our MEMS MIC technology pushes the boundaries of audio sensor performance for voice recognition. By combining ultra-low noise, high sensitivity, and integrated digital processing in a tiny, robust package, we enable voiceprint systems that are more accurate, reliable, and power-efficient than ever before. These innovations have positioned us at the forefront of voice-biometric hardware: engineers building secure access systems, smart home devices, and connected cars are choosing our MEMS MICs to achieve next-level voice recognition accuracy.

As voice authentication continues to gain traction in consumer and enterprise products, the quality of the captured sound becomes paramount. Our ongoing advancements in MEMS microphone design – from novel diaphragm structures to advanced ASIC architectures – ensure that voiceprint algorithms have the best possible audio input. We encourage system designers to explore our technical resources and product families to learn how these MEMS MIC breakthroughs can be integrated into their next-generation voice-enabled systems. For more details on performance and application examples, please consult our white papers and datasheets or contact our engineering team.

Sources: Cutting-edge MEMS microphone designs and their impact on voice interfaces and biometrics are documented in industry publications_{mouser.comanalog.comusesmileid.comdigikey.com.} Independent reviews highlight MEMS MIC specifications (e.g. SNR up to 75 dB, dynamic range ~105 dB) and array capabilities_{mouser.commouser.comdigikey.com.} These references underscore why high-performance MEMS microphones are essential for accurate voiceprint recognition in today’s smart devices and vehicles.
