Key Features
-

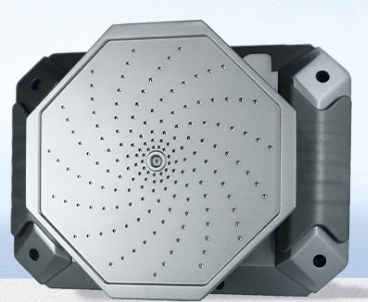

176-Mic MEMS Array for high-precision sound capture
-
Integrated Beamforming and Noise Localization Algorithms
-
Support for Secondary Development with open interfaces and SDK documentation
-
Compact and Modular Design for easy system integration
-
Wide Frequency Range: Up to 90 kHz, 24-bit resolution
-
Standard Interfaces: Ethernet, USB, audio, and power connectors
-
Compatible with Portable, Embedded, or Industrial Acoustic Imaging Devices
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ASAI176 |
| Microphones | 176 MEMS microphones |
| Sampling Rate | 200 kHz |
| Frequency Range | Up to 90 kHz |
| Sound Pressure Level (SPL) | Max. 120 dB |
| Dynamic Range | 40 dB |
| Resolution | 24-bit |
| Optical Sensor Support | 1280 × 800 px @ 40 FPS |
| Acoustic Frame Rate | Up to 100 FPS |
| Interface Options | Ethernet / USB-A 3.0 / USB-C / Audio 3.5mm |
| Power Supply | 20 V via USB-C |
| Dimensions | 340 × 340 × 100 mm |
| Weight | 2.6 kg |
| Ingress Protection | IP54 |
| Recommended Use | Portable or Embedded Acoustic Imaging Systems |
Applications
-
Portable acoustic imaging instruments
-
Industrial equipment noise diagnostics
-
Structural vibration and leakage detection
-
Embedded sound source localization systems
-
R&D and academic acoustic research
Development & Integration Support
-
Provides hardware documentation and SDK interface
-
Supports custom algorithm integration
-
Compatible with third-party computing platforms
-
Designed for OEMs, integrators, and acoustic system developers
